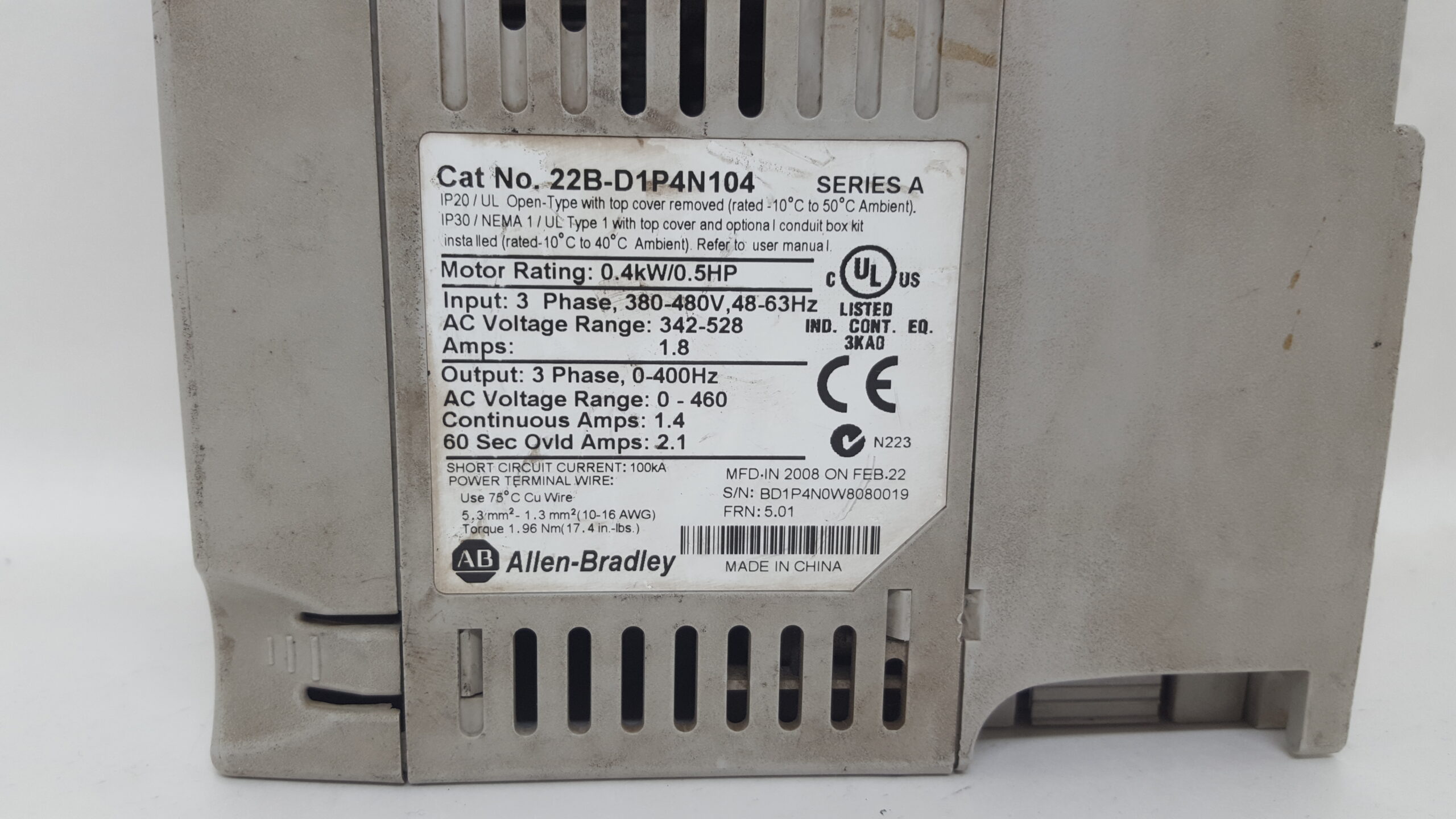

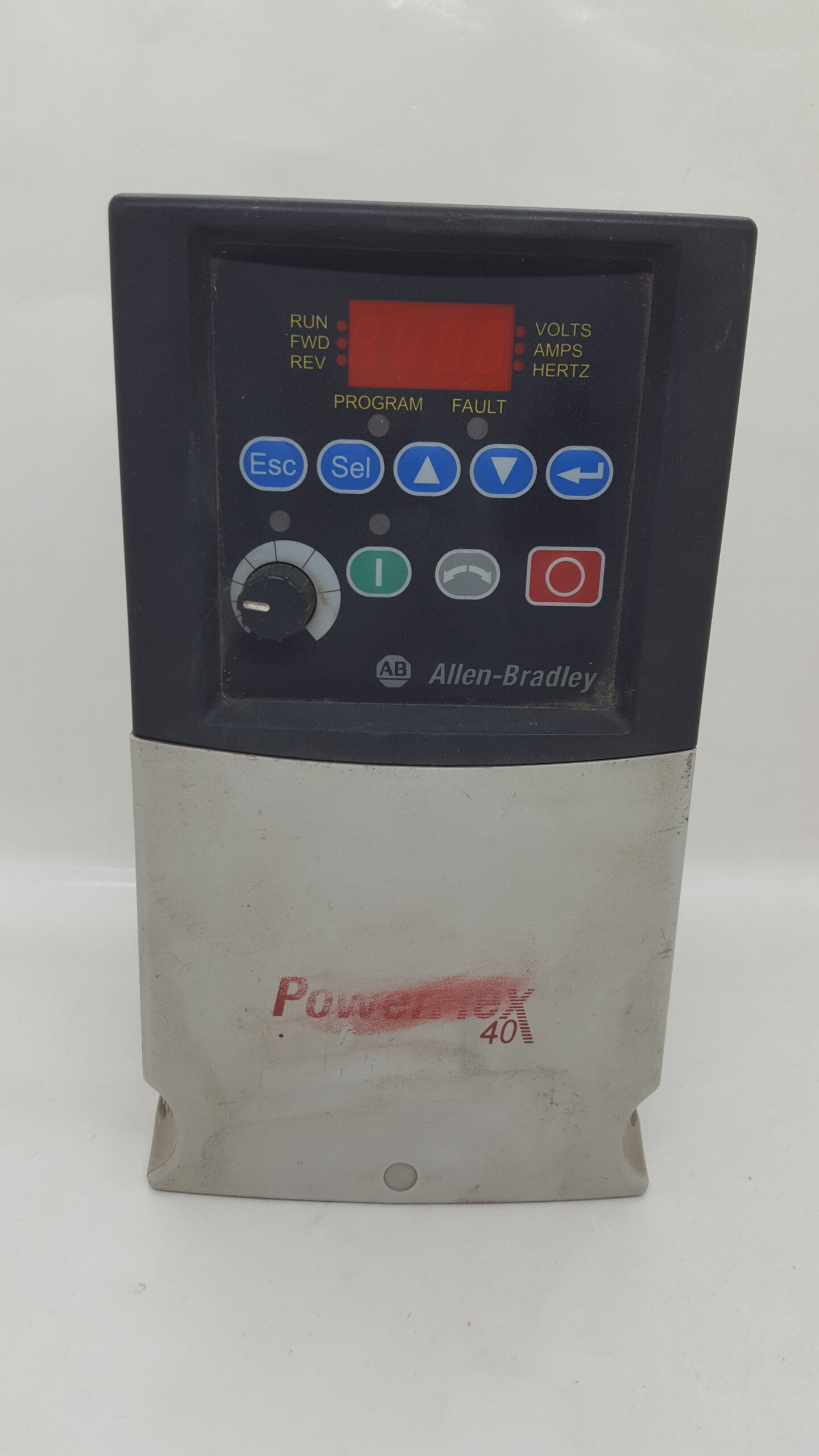

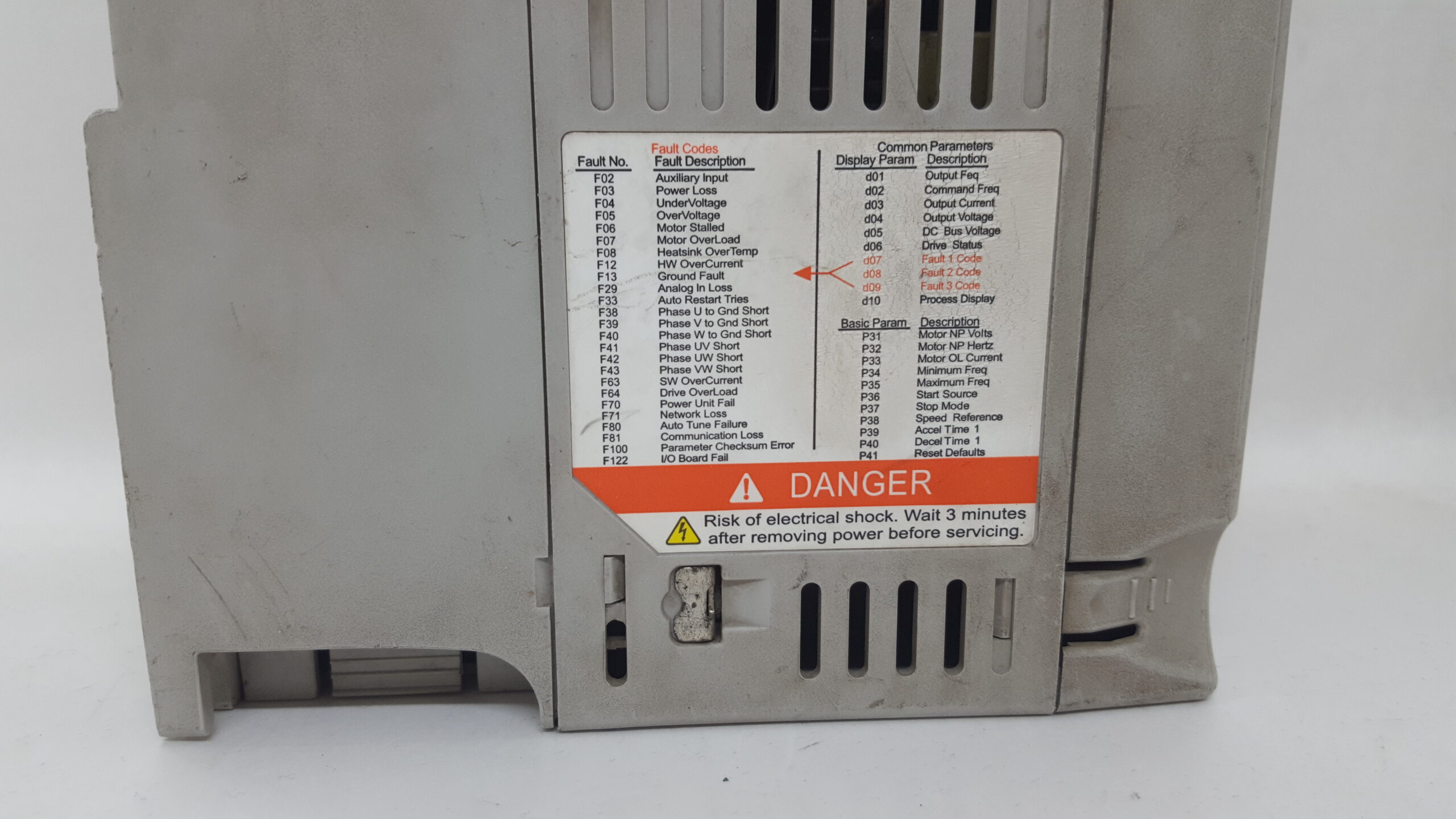

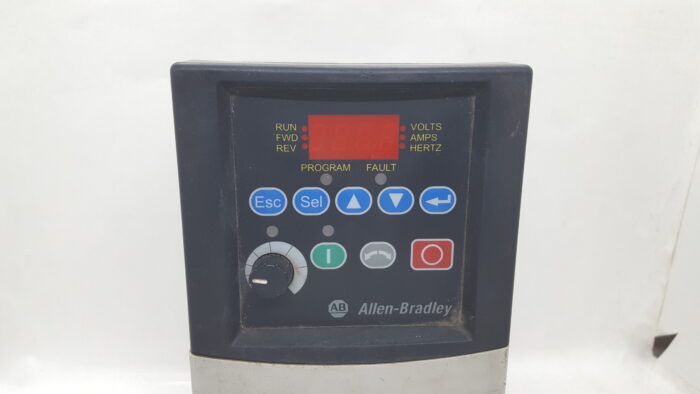

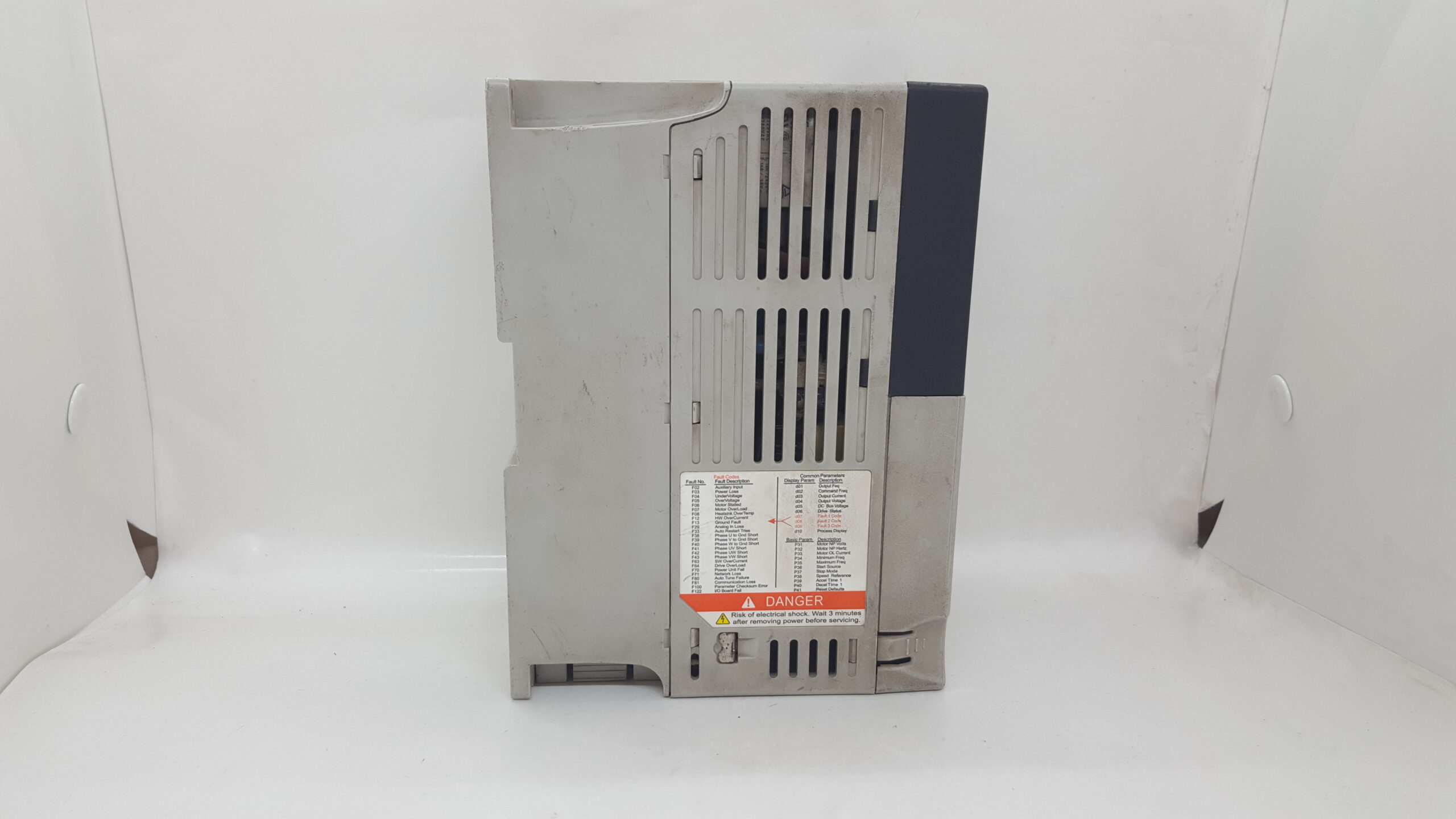

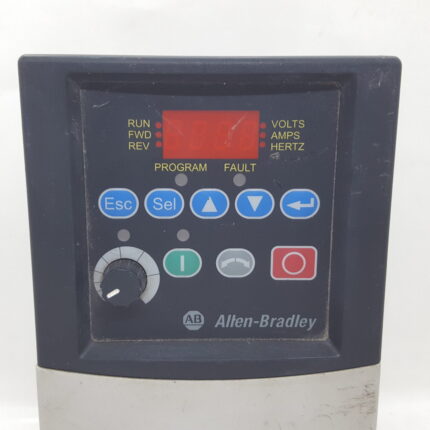

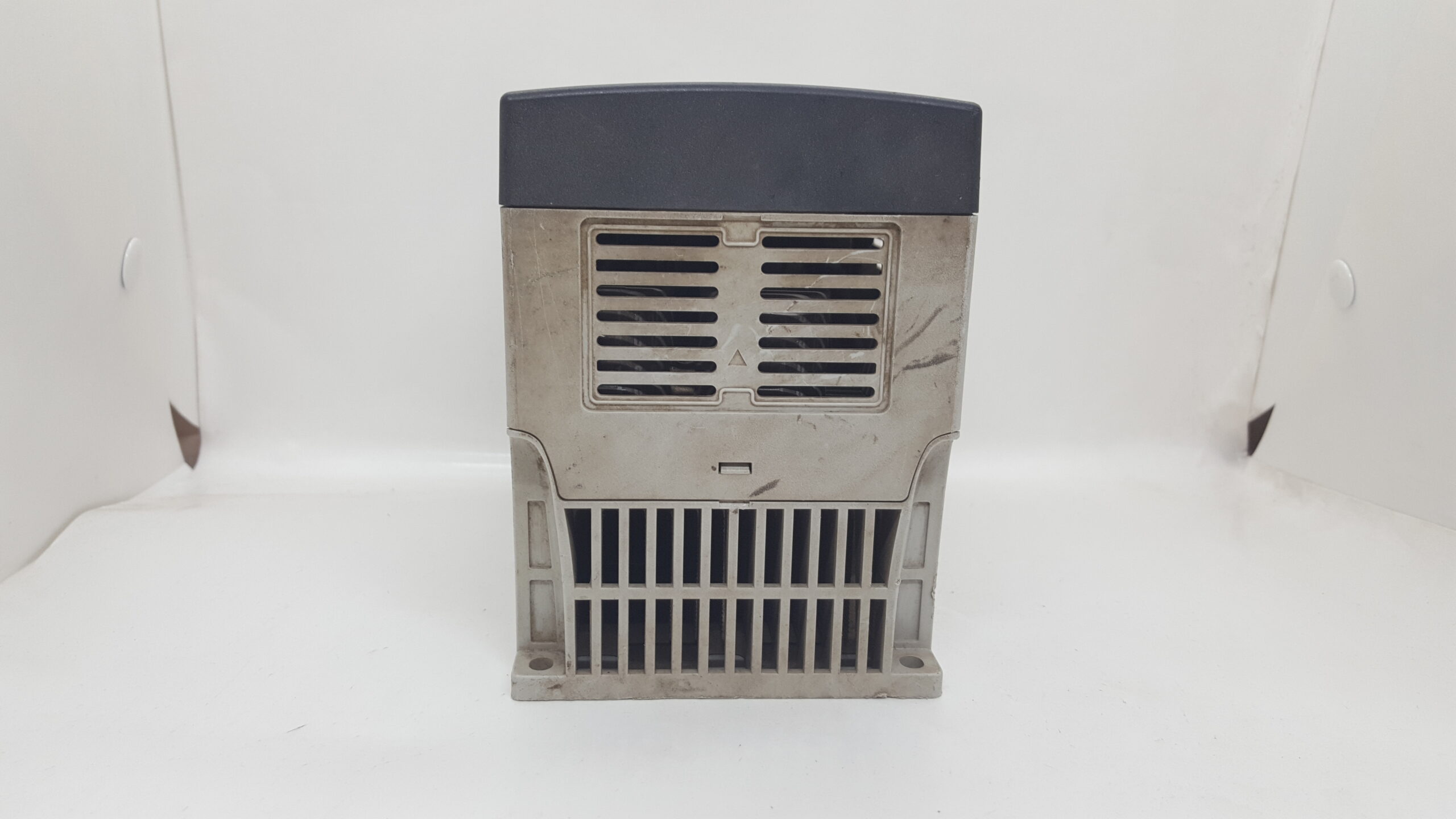

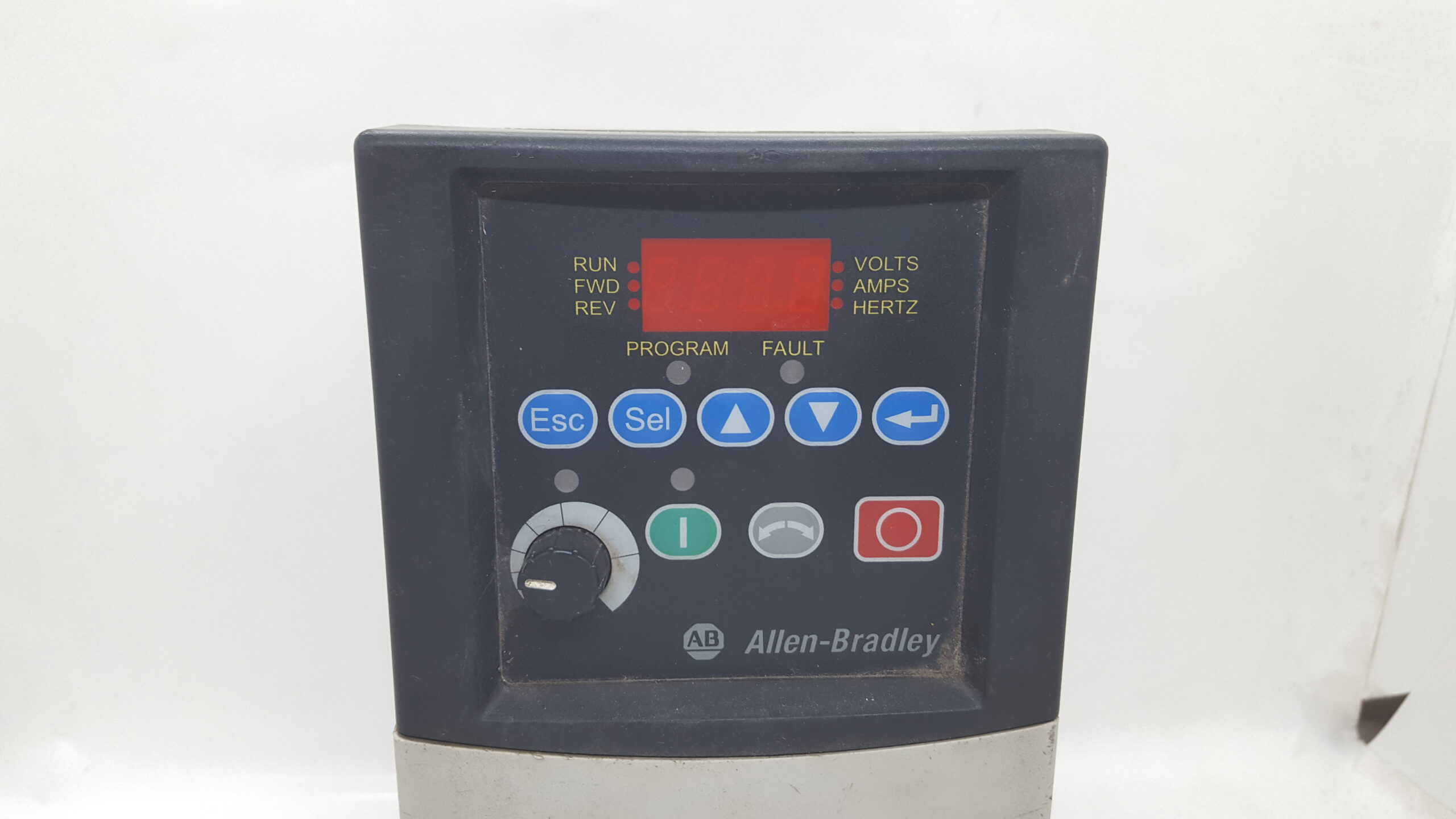

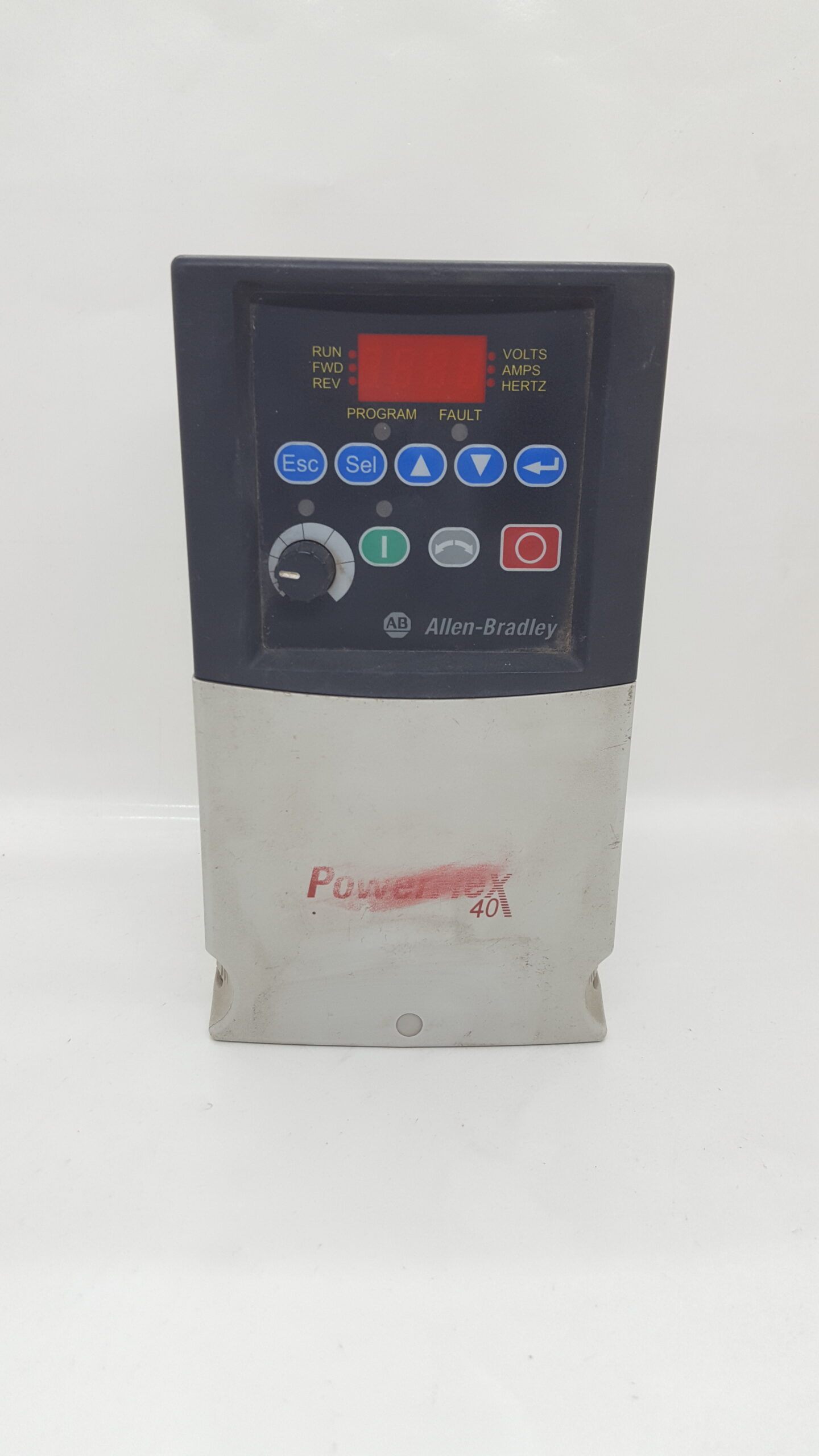

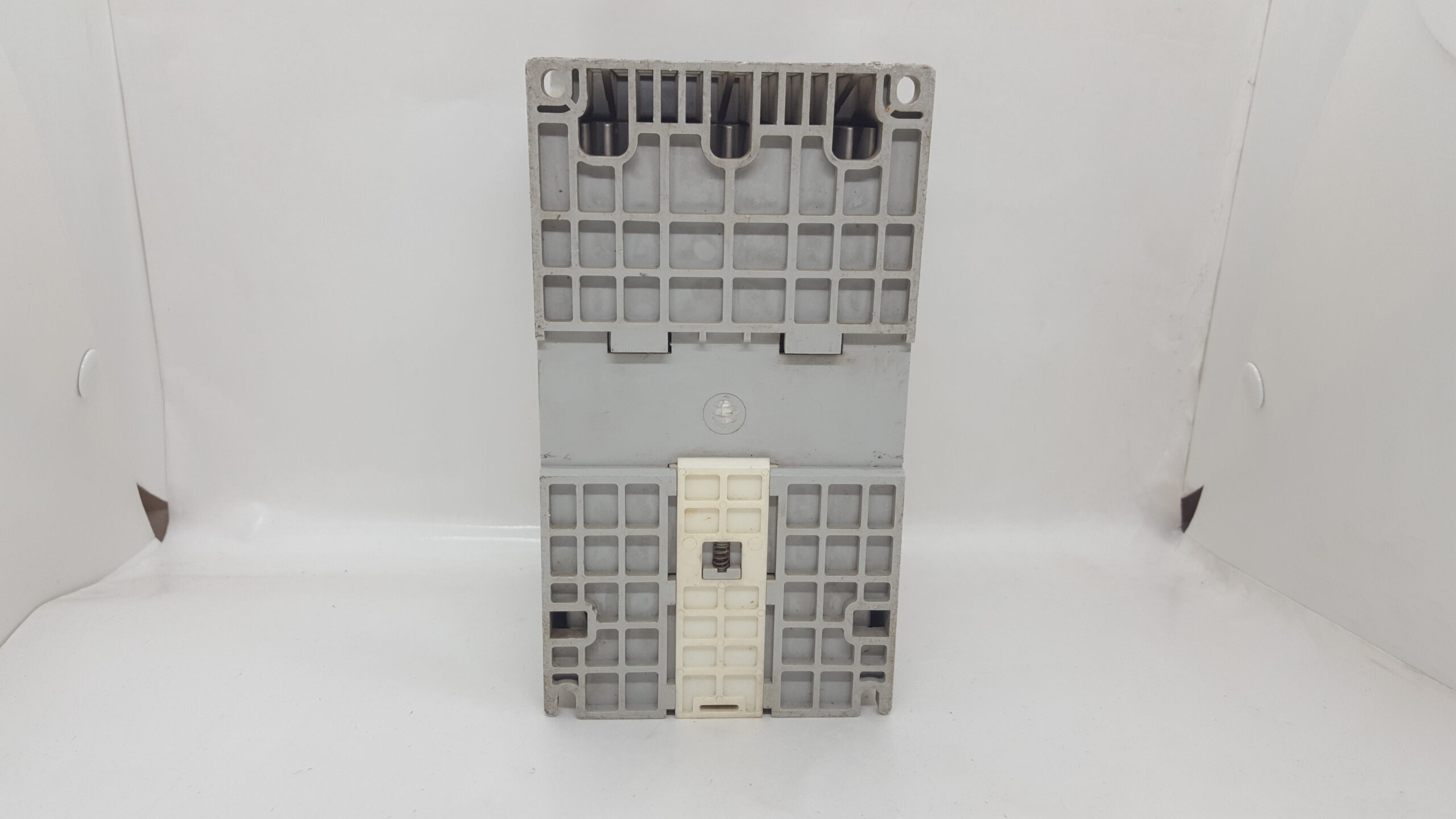

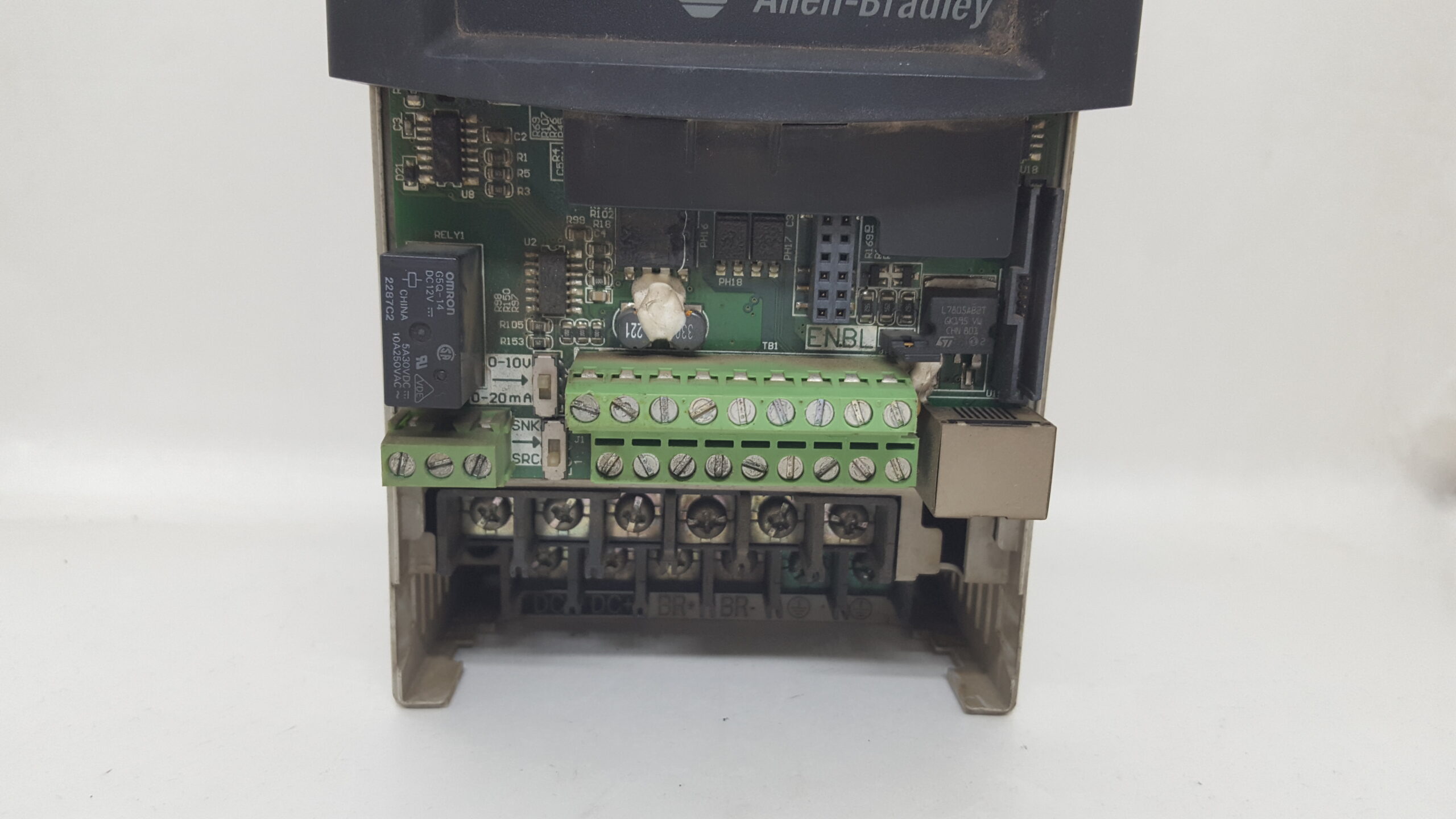

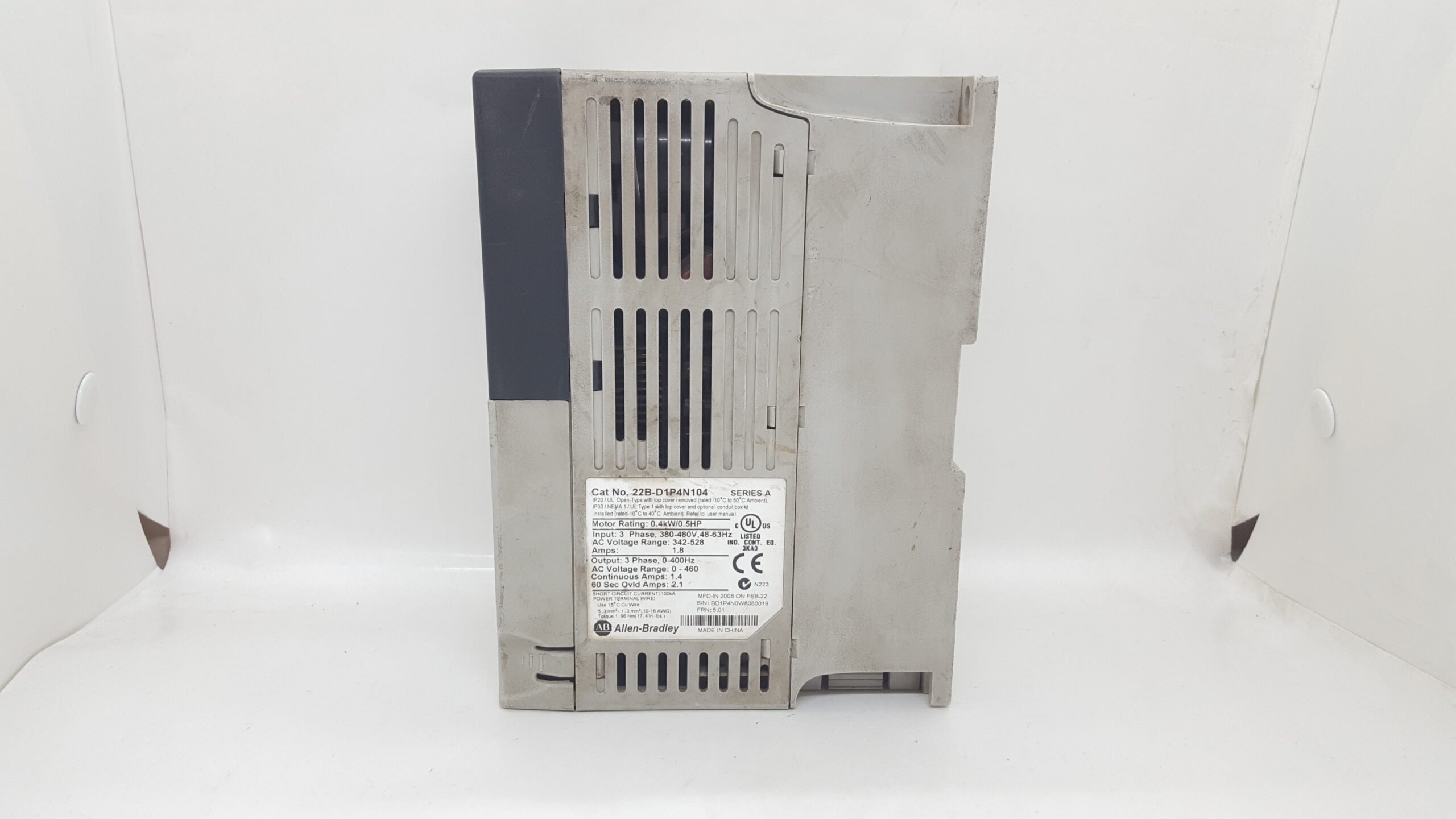

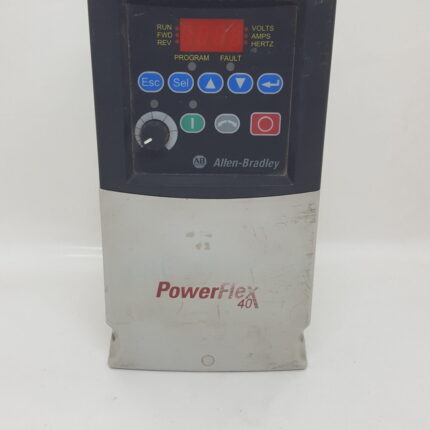

ALLEN BRADLEY
CAT NO. 22B-D1P4N104
SERIES A
IP20/UL OPEN-TYPE WITH TOP COVER REMOVED (RATED -10°C TO 50°C AMBIENT). IP30/NEMA 1/UE TYPE 1 WITH TOP COVER AND OPTIONAL CONDUIT BOX KIT INSTALLED (RATED-10°C TO 40°C AMBIENT) REFER TO USER MANUAL
MOTOR RATING: 0.4KW/0.5HP
INPUT: 3 PHASE, 380-480V,48-63HZ LISTED
AC VOLTAGE RANGE: 342-528
IND. CONT. ED.
AMPS: 1.8
OUTPUT: 3 PHASE, 0-400HZ
CE
AC VOLTAGE RANGE: 0-460
CONTINUOUS AMPS: 1.4
60 SEC OVID AMPS: 2.1
SHORT CIRCUIT CURRENT: 100KA

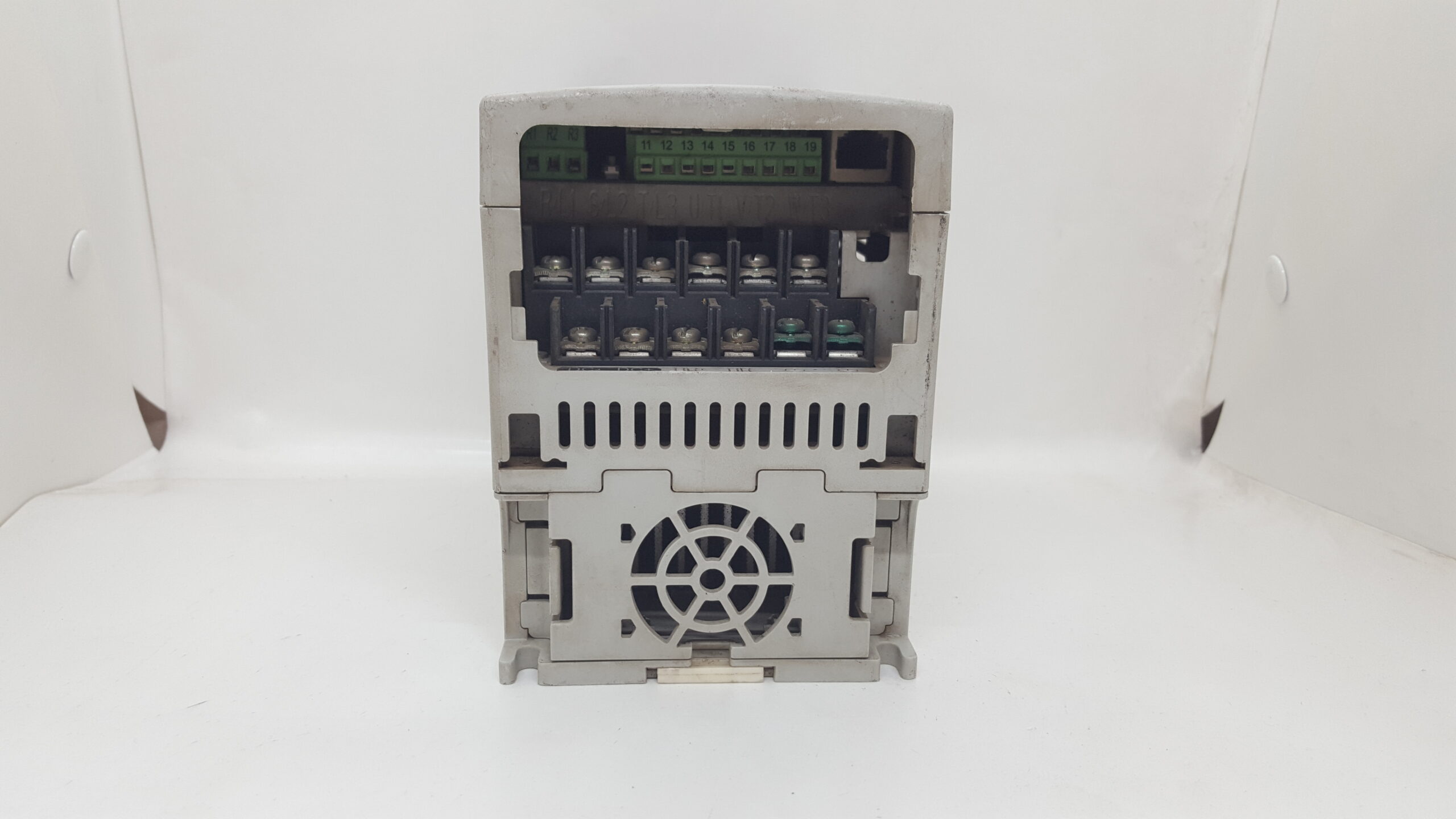

POWER TERMINAL WIRE:
N223
MFD IN 2008 ON FEB-22 S/N: BD1P4N0W8080019 FRN: 5.01
USE 75 C CU WIRE 5,3 MM² 1.3 MM², 10-18 AWG) TORQUE 1.96 NM(17.4 IN-LBS.)
MADE IN CHINA
